ChromoX by Tech for rally

Detailní popis produktu

The ChromoX Tripmaster is engineered for riders, drivers, and co-drivers who demand precision, reliability, and instant
readability in every stage. Designed for both paper and digital roadbooks, ChromoX combines rugged CNC-machined
hardware with a sunlight-readable color display and rally-proven controls - so you stay focused when it matters most.

Key Features
- CNC Aluminium housing with black UV resistant anodizing
- Reflective 2.7" color screen - high resolution (400 x 240px)
- Built-in tactile buttons for intuitive control and settings

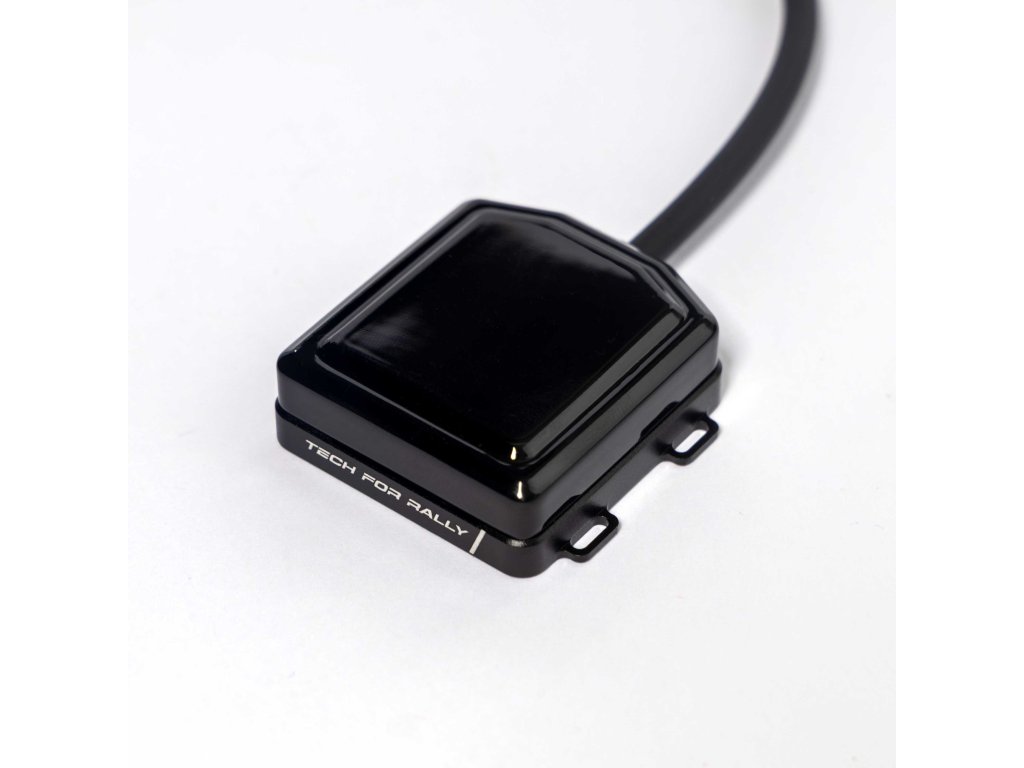

- External high-accuracy GNSS receiver for optimal signal reception
- Wi-Fi for OTA firmware updates
- Bluetooth for Digital Roadbook mode with TerraPirata integration and bluetooth remote control
- Heavy-duty M8 connectors in colors (Power, Remotes and GNSS receiver)
- Compatibile with rally towers and holders

High-Precision Distance & Speed Tracking
Powered by advanced GNSS technology and high-speed wheel sensor processing, the ChromoX delivers accurate
readings for:
- Partial and total distance (GNSS or Wheel Sensor)
- Speed with average speed and top speed calculations (GNSS or Wheel Sensor)
- RoadMatch wheel sensor calibration - automatic wheel circumference matching
- GNSS trip calibration for maximum accuray
- CAP heading
- Data recording per stage / day: stage trip, speed, time, top speed, average speed (15days memory)

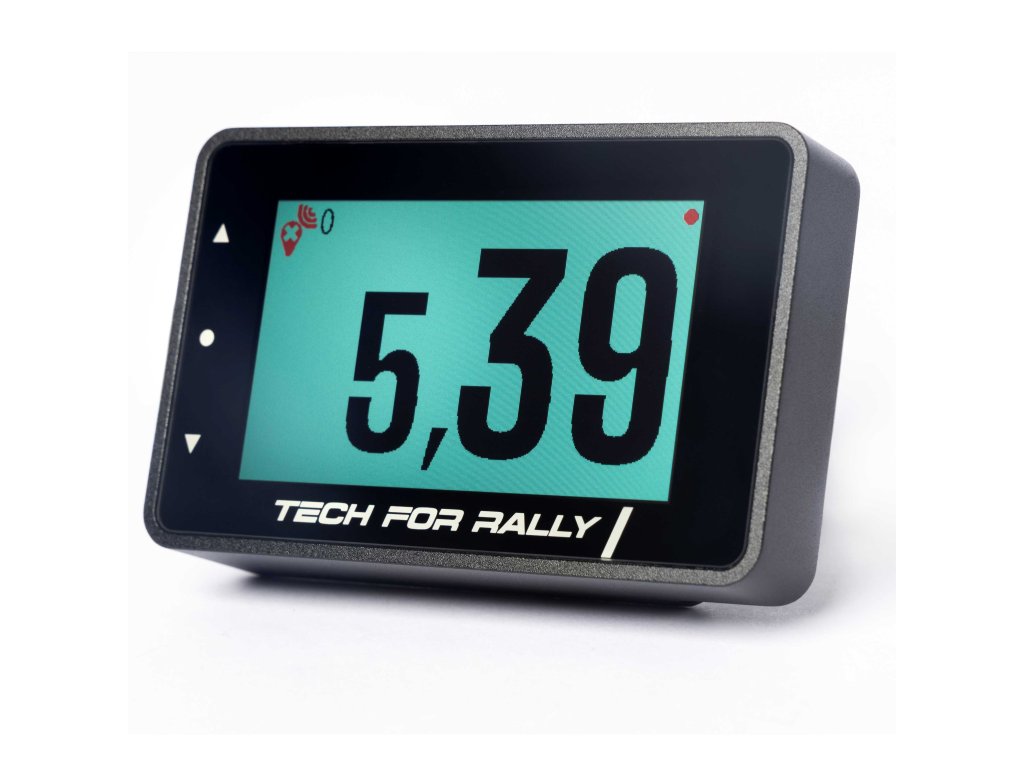

Sunlight-Readable 2,7" display offers:
- Excellent visibility in full daylight
- Wide viewing angles
- Low power consumption
- High-contrast color layout for instant recognition
- Fully readable in dust, rain, vibration, and heat

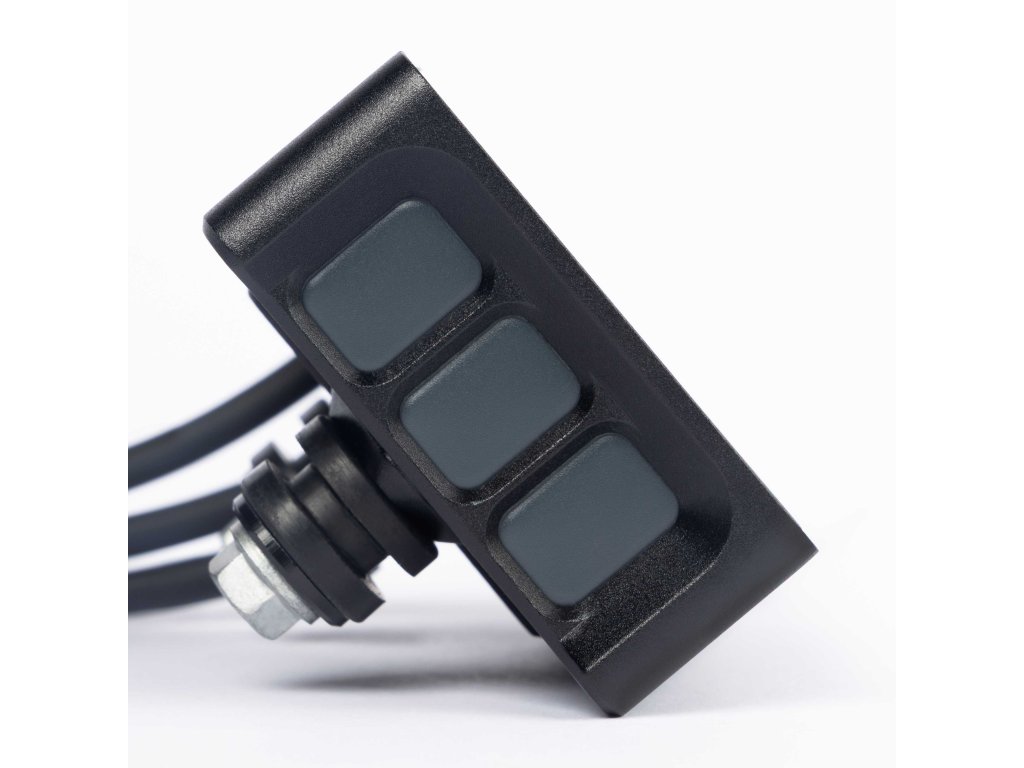

Fast & Intuitive Button Controls
Designed around rally-proven ergonomics:
- Tactile, glove friendly built-in buttons
- Multi-function short and long press actions
- Instant access to reset, adjust, menu and configuration
- No touchscreen, no distractions

Ready for the Digital
With built-in Wi-Fi and Bluetooth, ChromoX is ready for modern navigation:
- Pairing with tablet / digital navigation device with Android
- TerraPirata integration:
- Bluetooth remote control support
- Waypoint navigation (arrow, distance, speed zones, warnings)
- Navigation data repeated directly on the ChromoX screen
- Automatic trip alignment upon waypoint validation
- others

Built for Real Competition
ChromoX is engineered for endurance:
- Durable aluminum CNC machined housing
- Vibration-resistant mounting
- Wide temperature operation range
- Dust & Waterproof design

Fully Configurable
Adapt ChromoX perfectly to your event and riding style:
- Wheel circumference and calibration settings
- GNSS or wheel sensor priority
- Day / Night display mode
- Trip adjustment (0.0 or 0.00)
- Fully configurable Racing Menu - layout up to three key
information in one screen (Trip & Cap & Speed)

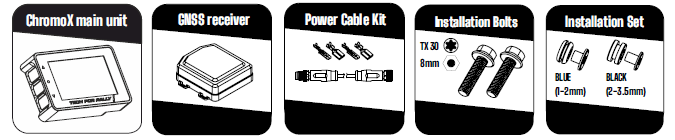

Package includes:

Technical specifications:
- Dimensions: 85 × 53.5 × 22 mm
- Weight: 195 g
- Display: 2.7″ reflective color LCD, 400 × 240 px
- Connectivity: Wi-Fi, Bluetooth
- Connectors: M8 (Power, GNSS, Remotes)

Optional (sold separetly):
- Wheel Sensor
- Y-splitter cable (required to combine GNSS and wheel sensor input)
*Note: Wheel sensor operation requires a Y-splitter cable or a complete wheel sensor kit.
